Port Expert
Toolpath generation for CNC cylinder head porting
Port Expert
Simply define the port shape and any geometry to avoid, then configure your tool and machining parameters. Port Expert does the rest!
Mastercam Port Expert facilitates toolpath generation for CNC cylinder head porting.

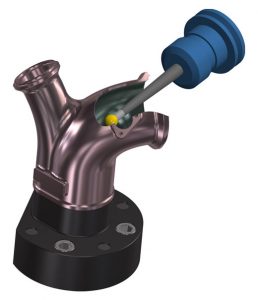

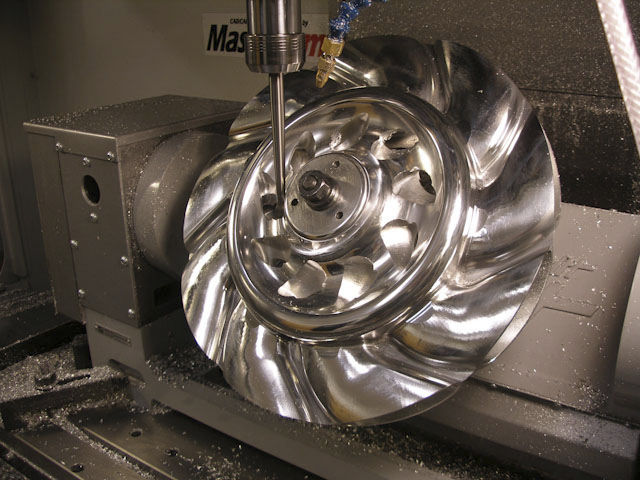

It is a fast and easy-to-use software for creating multiaxis toolpaths within cylinder head ports, complex tubes, or deep pockets. This software creates accurate, efficient porting motion on surface patches or solid body data.
Mastercam Mill-Turn simplifies today’s high-powered, multistream machining centres.
With Mastercam, your workflow is efficient. Choose your machine, and Mastercam Mill-Turn automates part transfers, tool planes, stock definition, and setup. Then apply your toolpaths, quickly synchronize them, verify your project with simulation, and post your code. Changes along the way are fast and easy — the way programming should be.
Mill-Turn’s Sync Manager is a user-friendly way to optimise part cycle times and manage interactions between toolpath operations. Easily navigate our Gantt-style timeline and vertical stream interface to coordinate operations and track cycle times.
Applications

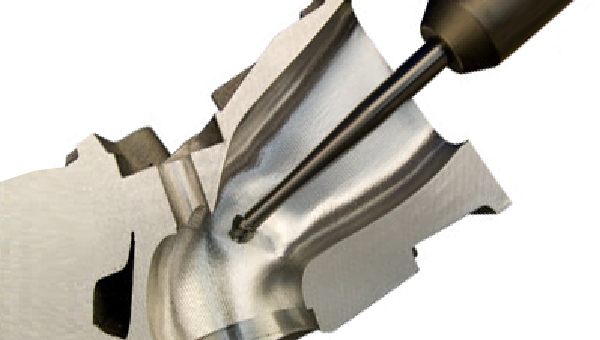

The most common application is to machine engine ports on racing and high performance engines. Port Expert removes material to cut the port to precise engineering specifications. Tube machining is also particularly useful for aerospace companies that have down hole machining needs that cannot be accomplished by drilling.
Cylinder Head Manufacturers
Racing Teams
Engine Builders
Aerospace Companies
Educational Institutions
KEY BENEFITS:
Collision Avoidance
Port Expert checks for collisions between the tool and workpiece. It automatically tilts the tool to eliminate collisions while keeping tool motion as efficient as possible.
Flexibility
Port Expert supports 4-axis or 5-axis simultaneous motion for both roughing and finishing, so you can take advantage of the rigidity of a 4-axis setup or the reach of a 5-axis machine.
Efficiency
Port Expert will create the same efficient tool motion using one smooth single drive surface or with hundreds of reverse-engineered drive surfaces stitched together.
Ease of Use
Programmers appreciate the simple user interface and intuitive approach to efficient toolpath generation with minimized, simultaneous 5-axis motion—in a fraction of the time it would take without Port Expert.
Intelligent Motion
Regardless of the user’s choice of a 4-axis or 5-axis machine, Port Expert will minimize wasted machine movement by remaining in 3-axis mode for as long as possible.
Dynamic Roughing
Port Expert can create highly efficient roughing motion with Dynamic Motion™ toolpaths, or traditional offset-based roughing motion. Both methods are compatible with stock models, allowing the user to work within a partially-roughed opening with no air cuts.
